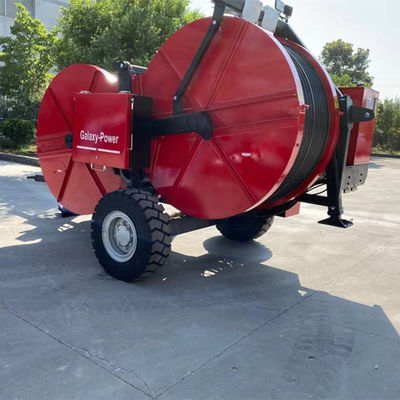

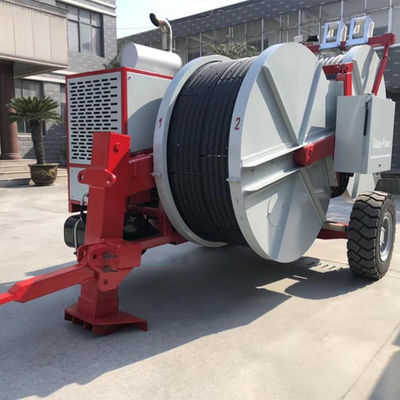

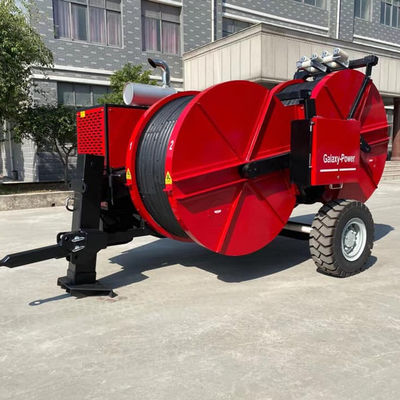

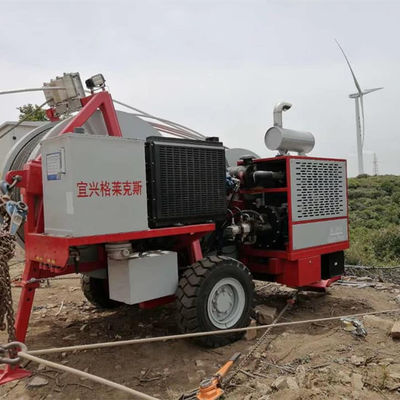

SA-ZY-30KN Adjustable Hydraulic Puller Tensioner for 500KV Transmission Line Stringing

SA-ZY-30KN Adjustable Hydraulic Puller Tensioner for 500KV Transmission Line Stringing

30KN Hydraulic Tensioner Equipment Description:

The machine is hydraulically controlled for the tensile force and complete with quality parts and

components such as hydraulic break, high-performance finned radiator, hydraulic power unit,

precision filtering unit to support the safe, high-quality and efficient performance. The hydraulic power

unit provides the traction of conductors at both positive and negative directions. The single-beam trailer

chassis is also adopted, where lifting points are pre-set for anchoring and temporary anchoring, to achieve

a portable compact integrity easy to be loaded, transported and transferred.

30KN Hydraulic Tensioner Equipment Engine :

Gassoline engine 12kw(16hp) Electrical system 12V





30KN Hydraulic Tensioner Equipment Characteristics :

Bull-wheel diameter : 1300mm Max conductor diameter : 40mm Max Optical fiber cable diameter : 21mm Groove width : 60mm Groove number : 5 Total weight : 2064kg Overall dimension 3700×1950×2150mm





30KN Hydraulic Tensioner Equipment Main Configuration :

Engine Japan Honda (or Robin) Hydraulic pump Tianjin Parker Main motor Tianjin Permco Speed reducer German Rexroth / Italy Brevini Hydraulic meter German WIKA





Configuration:

·Hydraulic dynamometers

·Hydraulic oil cooling system

·Grounding connection point





Hydraulic Transmission :

·The machine can realize step less speed

·The machine is provided with tension presetting system





Additional Devices :

·Air brake system for the trailer (extra charge)

·Hydraulic conductor clamps for drum change operations (extra charge)

·Swivel guide rope roller

·Trailer for towing at max speed of 30 km/h
